LoRa® Base Station

LoRa® Base Station

The LoRa® Base Station is a Lora network gateway used to connect all wireless Unicorn controllers (12V, 24V or Inception) in range to the cloud based scheduling and control system.

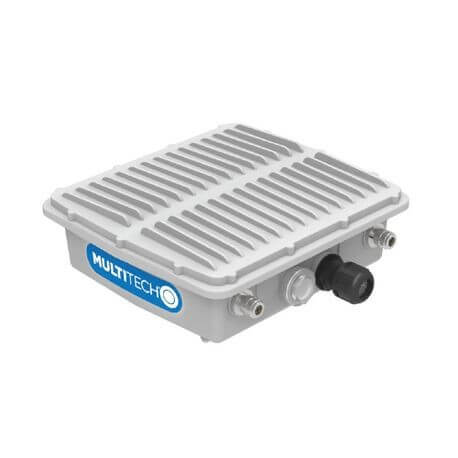

MultiConnect® Conduit™ IP67 Base Station is a ruggedized IoT gateway solution, specifically designed for outdoor LoRa® public or private network deployments. This highly scalable and certified IP67 solution is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat, supporting LoRaWAN™ applications in virtually any environment. The enhanced MultiConnect Conduit IP67 solution can support thousands of LoRaWAN certified end nodes, including the MultiConnect® mDot™* and xDot™*. This flexible solution provides durable, low-power, wide area connectivity in support of M2M and IoT applications for both LoRa service providers and individual enterprises wanting to expand their LoRa network coverage.

Designed for easy deployment, the solution includes a MultiConnect Conduit with a LoRa MultiConnect® mCard™, IP67 enclosure, LoRa antenna to improve outdoor range and provides a choice of 4G-LTE or Ethernet backhaul options. It can be deployed as part of an existing telecommunications tower, individual stand or wall mount.

KEY BENEFITS

• External high gain antenna increases LoRa connectivity to remote assets
• Greatly expands LoRa network coverage
• High-quality, low-cost support for outdoor IoT applications

FEATURES

• Supports 868 MHz and 915 MHz ISM bands
• LoRaWAN Compliant
• Supports Public and Private LoRa network deployments
• POE (power over Ethernet) for easy deployment and maintenance
• Lightning arrestor and grounding mechanism for protection against storm damage (optional accessory – sold separately)
